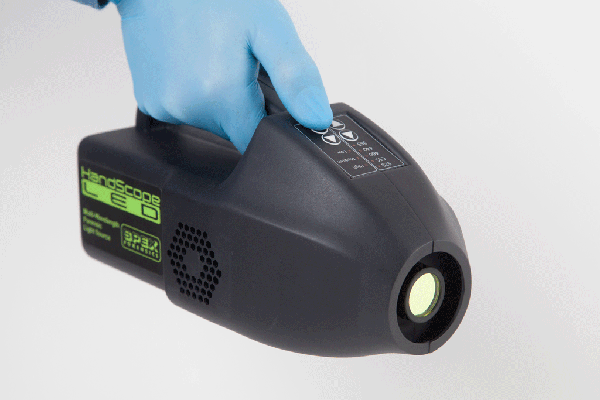

Spex Handscope LED



Spex-LED-Handscope-web-SM


Multi-Wavelength Forensic Light Source
One Unit - Five Wavelengths, Change Wavelengths Instantly with the Press of a Button


  • - 25,000 Hour rated LED Engine.
  • - One Hand Operation
  • - Electronic control of wavelength and intensity selection.
  • - 5 wavelengths total: UV(365), 440, 460, CSS (Crime Scene Search), 520
  • - 110-220 VAC power supply for main unit and external charger,
  • - 2 Lithium Ion Batteries,
  • - External charger for battery,
  • - 4 pairs of goggles (White, Yellow, Orange, Red),
  • - 3 - 62mm dia. camera filters (Yellow, Orange, Red)
  • - Manual,
  • - Rugged carrying case.

Technical Specifications

  • Illuminator Type: High Efficiency Light Emitting Diodes
  • Lifetime: 25,000 Hours
  • Display for Wavelength and Intensity, Backlit for operation in dark environments
  • Operating Temperature Range: 0° C to 35° C
  • Weight: <3 lbs. / <1.36 kg including battery
  •
Main Unit

  • Input Voltage: 10-24 VDC
  • Total Power Consumption: 90 W

Power Supply

  • Input Voltage: 90 - 264 VAC
  • Input Frequency: 47-63 Hz
  • Total Power Output: 100 W

Wavelength Specification

  • The HS-LED-5F contains:
  • 365nm (UV),
  • 440nm,
  • 460nm,
  • CSS (Crime Scene Search),
  • 520nm

System is manufactured under ISO 9001 standards.


Contact PhotoBiometrics LLC for pricing, specifications, and a demonstration
